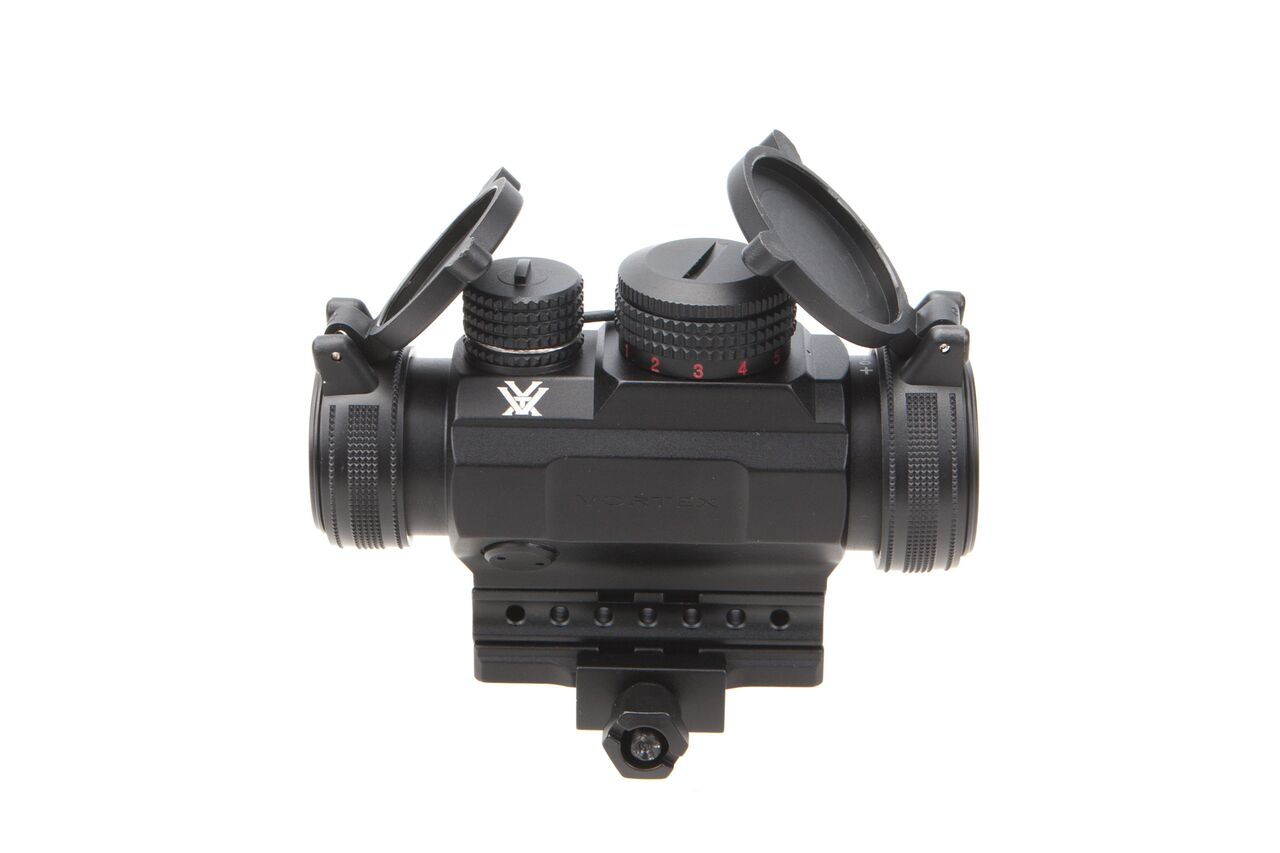

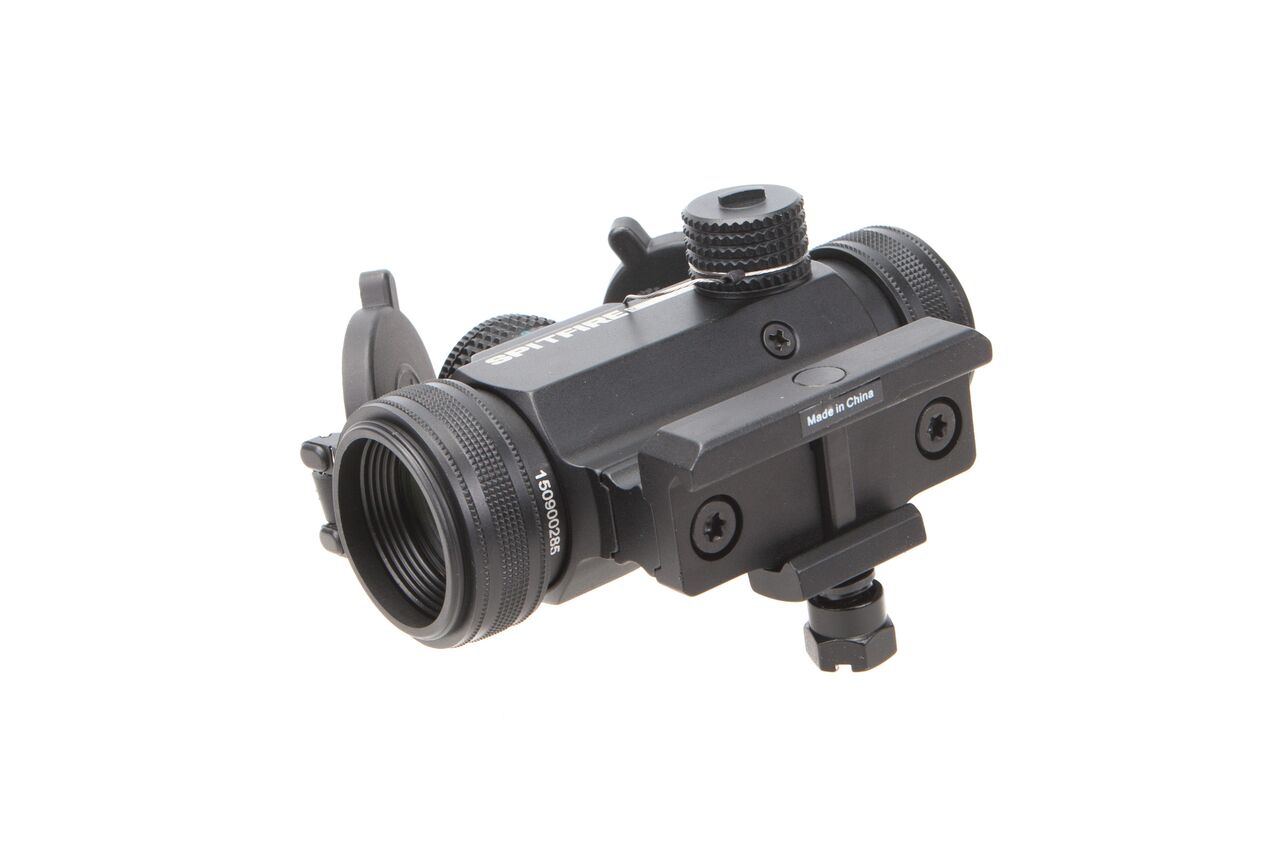

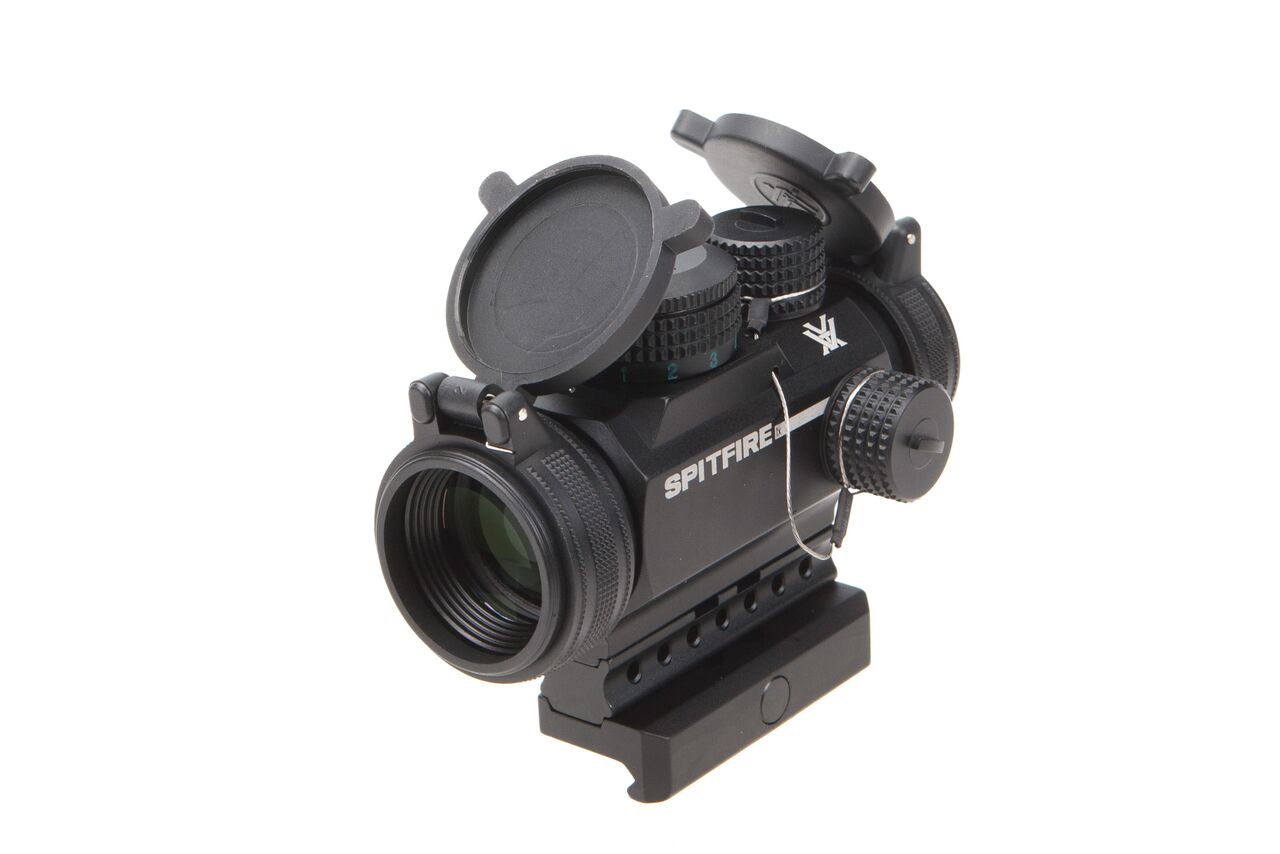

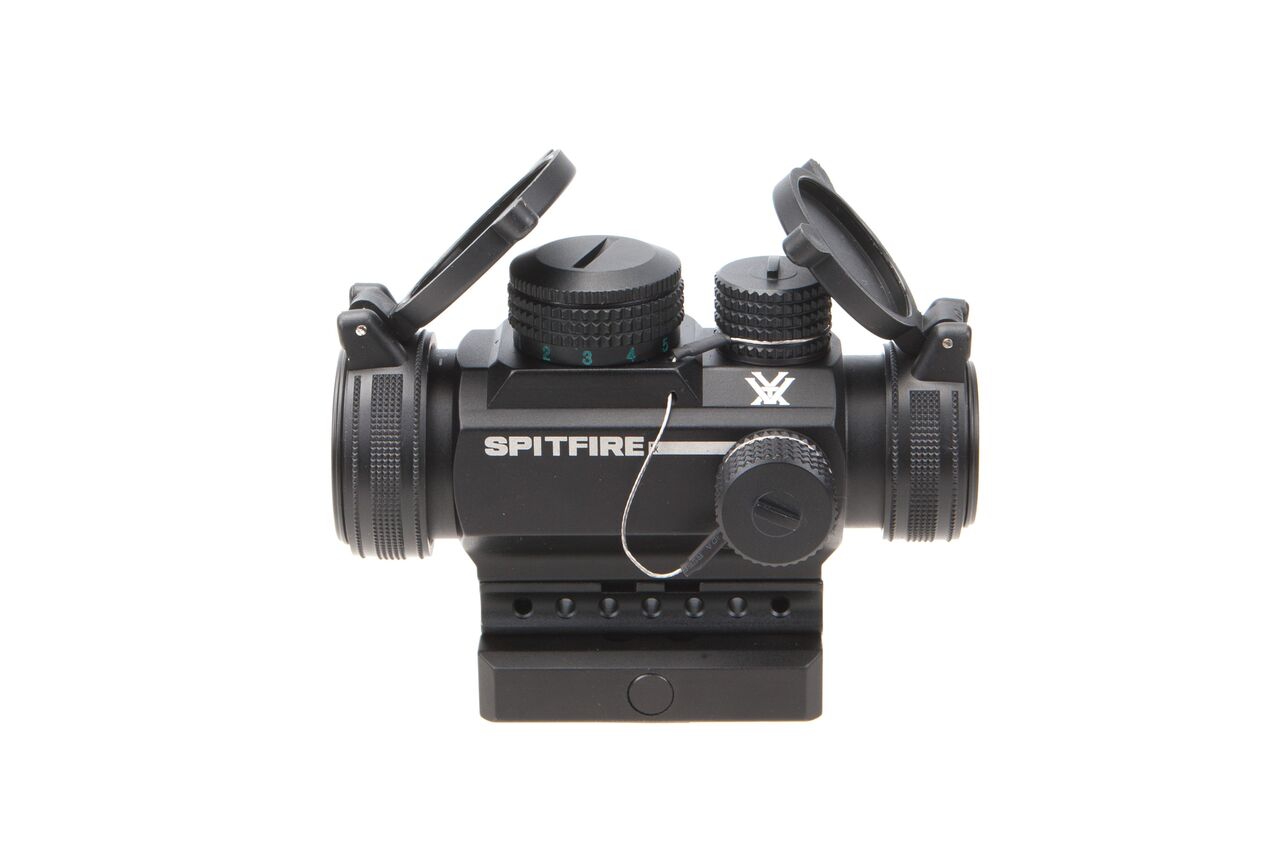

Vortex Spitfire 1x Prism Scope

Added on: 01/12/2018
Vortex Spitfire 1x Prism Scope

Availability: In stock


Vortex Spitfire 1x Prism Scope

Double click on above image to view full picture

Zoom Out
Zoom In

More Views


New In Box

Laced with advanced features, the sophisticated prism-based design allows for a more compact optical system without sacrificing optical quality. The DRT (Dual Ring Tactical) reticle is etched directly on the prism to assure consistent point-of-aim at all times with selectable red/green illumination of five intensity levels to match specific conditions.

Optical Features

  • Fully Multi-Coated               Multiple anti-reflective coatings on all air-to-glass surfaces increase light transmission.
  • Prism-Based Design           Delivers sharp optics and allows for unique reticle designs that are visible with or without illumination.

Construction Features


  • Single-Piece Chassis         Compact and lightweight.
  • Waterproof                        O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
  • Fogproof                            Nitrogen gas purging delivers fogproof, waterproof performance.
  • Shockproof                        Rugged construction withstands recoil and impact.
  • Hard Anodized Finish        Highly durable low-glare matte finish.
  • Operating Temperature      Rated from -22 degrees to +122 degrees Fahrenheit.



Convenience Features


  • Adjustable Brightness         Provides five levels of brightness intensity with red and green illumination settings.
  • Red/Green Reticle Option     Allows shooters a choice of dot color.
  • Battery Life                          Typical battery life is 250 hours at maximum brightness and 3,000 hours at minimum brightness setting.
  • Variable Mount Heights        Comes mounted at a lower 1/3 co-witness height of 40.4 mm from the optic center to base surface. Remove the mount riser if a      lower 30 mm mounted height is desired.
Magnification 1 x
Eye Relief 3.7 inches
Field of View 75 feet/100 yards
Adjustment Graduation 1 MOA
Max Elevation Adjustment 120 MOA
Max Windage Adjustment 120 MOA
Parallax Setting Parallax Free
Length 4 inch
Weight 11.2
